| Energy Source | |
| Dimensions | 58 x 61 x 53 cm |
| Power selections | 100-2800 Joules |
| Penetration/resolution | 250 m in depths of 150 m, with resolution of about 60 cm, 1000 m @ 1500J, in depths of 1500 m, 400 m in water depths of 3000m. |
| Dominant frequency | 1000-1400 Hz @ 500 J with ELC1200 |
| Input voltage | 200-240VAC 45-65Hz@ 4kVA single phase |
| Generator required | 2000 W rated 10A for charging rate @ 2000 J/s |
| Output voltage | From 2.0 to 4.0 kV DC |
| Trigger rate | 6 times /s |
| Sound Source | |
| Dimensions | 125 x 76 x 60 cm |
| Weight | 48kg |
| Typical operating energy | 31J per tip to minimize bubble collapse component, 2800J maximum |
| Pulse width | 0.5-1.5ms |
| Tow cable | |
| Weight in air | 28kg 50m |
| Diameter | 25mm |
| Standard systems | 1 x Energy Source |
| 1 x Sound Source | |
| 1 x Two cable | |
| 1 x Power cable | |
| 1 x 1.5m BNC trigger cable | |
| Deck energy box | |
| size WxLxD | 58 x 61 x 53 cm |
| Energy range | 100-2800 J |
| Design penetration/resolution | Depending on the situation, at 150 water depth, the penetration depth is 250 meters and the resolution is approximately 60 centimeters; |
| At 1500 J energy, the penetration depth is 100 meters in 1500 meters water depth; the penetration depth is 400 meters in 3000 meters water depth | |
| Input power | 200-240 VAC 45- 65Hz@4kVA Single Phase |
| Output power | 2000 W, 10A@charging rate 2000 J/s |
| Output voltage | 2.0 to 4.0 kV DC |
| trigger interval | Maximum 6 times |

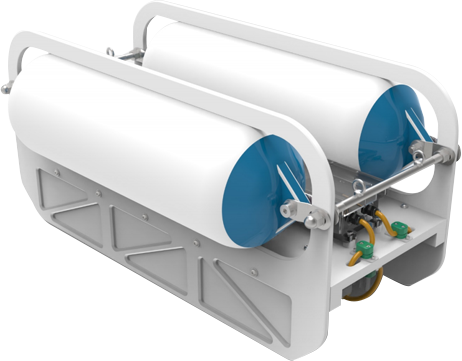

| underwater sound source | Two-body valve form |
| Size | 125 x 76 x60 cm |
| Weight | 48kg |
| Typical working energy | The maximum energy per discharge tip is 31J and the total energy is 2800J |
| source level | 200dB re 1uPa@1m |
| pulse width | 0.5-1.5ms |
| main towing warp | |
| weight in the air | 28kg 50m |
| diameter | 25mm |
| Standard configuration | 1 x deck energy box |
| 1 x underwater sound source | |
| 1 x main streamer | |
| 1 x power cord | |
| 1 x 1.5m BNC trigger cable | |
