LV100 Low Voltage Boomer
描述
The LV100 is a safe and economic solution for marine seismic survey. The former model has been
safely operated for about 20 years and it comes some updates with the new LV100. It retains all the
functionality of traditional boomers yet offers a number of key benefits including date quality-some
of the very best in the market.
Features
  • Lowest voltage boomer system in market. Underwater capacitor, energy source output＜1000v, significantly safer than conventional systems running at up to 4000V.
    Safe
    Lowest voltage boomer system in market. Underwater capacitor, energy source output＜1000v, significantly safer than conventional systems running at up to 4000V.
  • 9.5kg energy source, compact design one man portable.
    Portability
    9.5kg energy source, compact design one man portable.
  • Main input 2kVA, light weight cable, easy mob and de-mob, small vessel friendly.
    Versatile
    Main input 2kVA, light weight cable, easy mob and de-mob, small vessel friendly.
  • 1745571556377242103c267b4e8f9bdae13238a78ce3952bd
    2 boomer plates interchangeable.
  • Max 6 pulse/s @ 100J, 10 pulses/s @50J, achieving an optimal balance between resolution and water depth, efficient for shallow water engineering and survey. Designed specifically for high-precision shallow-water engineering surveys without compromising efficiency.
    High resolution and efficiency
    Max 6 pulse/s @ 100J, 10 pulses/s @50J, achieving an optimal balance between resolution and water depth, efficient for shallow water engineering and survey. Designed specifically for high-precision shallow-water engineering surveys without compromising efficiency.
Energy Source
Dimensions532×276×158mm
Weight9.5 kg
Input voltage100-120 / 200-240Volts ac 50/60 Hz
Output voltage1000 V dc
Power consumption240VAC 50Hz@2kVA single phase
Trigger voltage+ve3.3V-12V
Light weight Tow Cable
Standard length60m (other length available)
Weight in air28kg
Weight in waterSlightly Positive Buoyancy
Diameter35mm
CompositionTriple insulated
Strain memberHigh-performance synthetic fiber
Cable breaking load500kg
Cable terminationPower supply 12 pin Mil-C-26482 Catamaran 8 pin wet pluggable

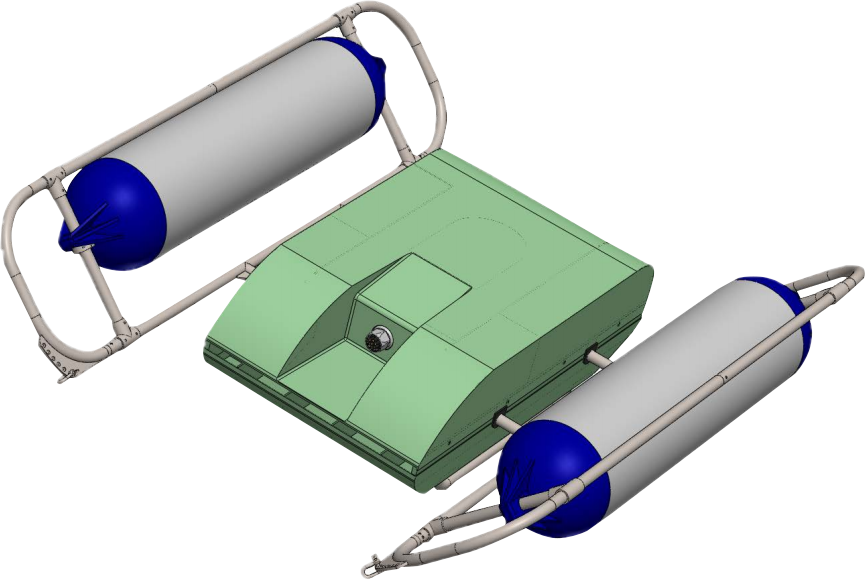

Catamaran
Catamaran assemble dimensions140 × 102× 52 cm
Plate dimensions39× 39×4 cm
Norway floatsAdjustable mounting angle for varying sea conditions
Weight in air44.5 kg
Energy discharge per pulse50/100 Joules
Acoustic output (re 1uPa@1000v)-195dB
Dominant frequency1500Hz (HF), 800Hz (LF)
Resolution better than20cm
PenetrationIn clay, 100m In coarse sand, 20m
Firing rate6 times per second@1001, or 10 times per second@50J
Catamaran connection6 pin wet pluggable
Frame assembly19mm stainless 316 tube
Standard LV100 System
1 x Deck power supply
1 x Catamaran assemble( transducer, electronics module and frame)
1 x 60m lightweight tow cable
1 x IEC mains cable with 13A square pin plug
1 x 1.5m BNC trigger cable
1 x Operation manual


Energy Source
Dimensions532×276×158mm
Weight9.5 kg
Input voltage100-120 / 200-240Volts ac 50/60 Hz
Output voltage1000 V dc
Power consumption240VAC 50Hz@2kVA single phase
Trigger voltage+ve3.3V-12V
Light weight Tow Cable
Standard length60m (other length available)
Weight in air28kg
Weight in waterSlightly Positive Buoyancy
Diameter35mm
CompositionTriple insulated
Strain memberHigh-performance synthetic fiber
Cable breaking load500kg
Cable terminationPower supply 12 pin Mil-C-26482 Catamaran 8 pin wet pluggable
Catamaran
Catamaran assemble dimensions140 × 102× 52 cm
Plate dimensions39× 39×4 cm
Norway floatsAdjustable mounting angle for varying sea conditions
Weight in air44.5 kg
Energy discharge per pulse50/100 Joules
Acoustic output (re 1uPa@1000v)-195dB
Dominant frequency1500Hz (HF), 800Hz (LF)
Resolution better than20cm
PenetrationIn clay, 100m In coarse sand, 20m
Firing rate6 times per second@1001, or 10 times per second@50J
Catamaran connection6 pin wet pluggable
Frame assembly19mm stainless 316 tube
Standard LV100 System
1 x Deck power supply
1 x Catamaran assemble( transducer, electronics module and frame)
1 x 60m lightweight tow cable
1 x IEC mains cable with 13A square pin plug
1 x 1.5m BNC trigger cable
1 x Operation manual
