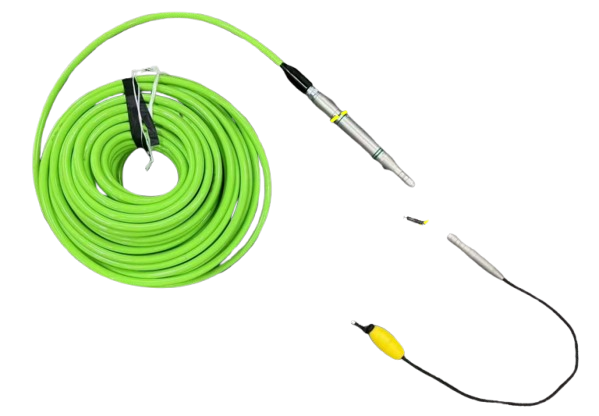

Hydrophone & Streamer
描述
XC-Sonic is capable to provide the completed solution for marine seismic survey, including own hydrophone elements to mount into the streamers, and make high resolution arrays to work with sparker and boomer systems.
Standard Product
  • 8 hydrophones, frequency range of 100 Hz to 10 kHz total length 1.8m, suitable for inland lakes (water depth less than 5 meters), or windfarm pre-piling and routing survey.
    Single Channel (standard)
    8 hydrophones, frequency range of 100 Hz to 10 kHz total length 1.8m, suitable for inland lakes (water depth less than 5 meters), or windfarm pre-piling and routing survey.
  • 12 hydrophones, CH1: 3-7 m, CH2: 20 m, Used independently or in combination, for shallow water mainly.
    Dual Channel
    12 hydrophones, CH1: 3-7 m, CH2: 20 m, Used independently or in combination, for shallow water mainly.
  • Number of hydrophones and spacing can be customized.Tow cable and preamplifier are universally compatible.
    Customization Options
    Number of hydrophones and spacing can be customized.Tow cable and preamplifier are universally compatible.
Hydrophone
Number of channelsSINGLE OR DUAL
Spacing20cm or customized
Sensitivity-151dB
Preamplifier
TypeSingle-ended (Standard 50 dB)
Frequency Response100 Hz to 10 kHz
Output SignalUp to 5V Peak-to-Peak
Physical Parameters
Outer Diameter2.5 cm
Density1.08
Tow Cable Length60 m or customized up to 150 m
Cable MaterialPVC
Filling FluidSilicone Oil


Hydrophone
Number of channelsSINGLE OR DUAL
Spacing20cm or customized
Sensitivity-151dB
Preamplifier
TypeSingle-ended (Standard 50 dB)
Frequency Response100 Hz to 10 kHz
Output SignalUp to 5V Peak-to-Peak
Physical Parameters
Outer Diameter2.5 cm
Density1.08
Tow Cable Length60 m or customized up to 150 m
Cable MaterialPVC
Filling FluidSilicone Oil

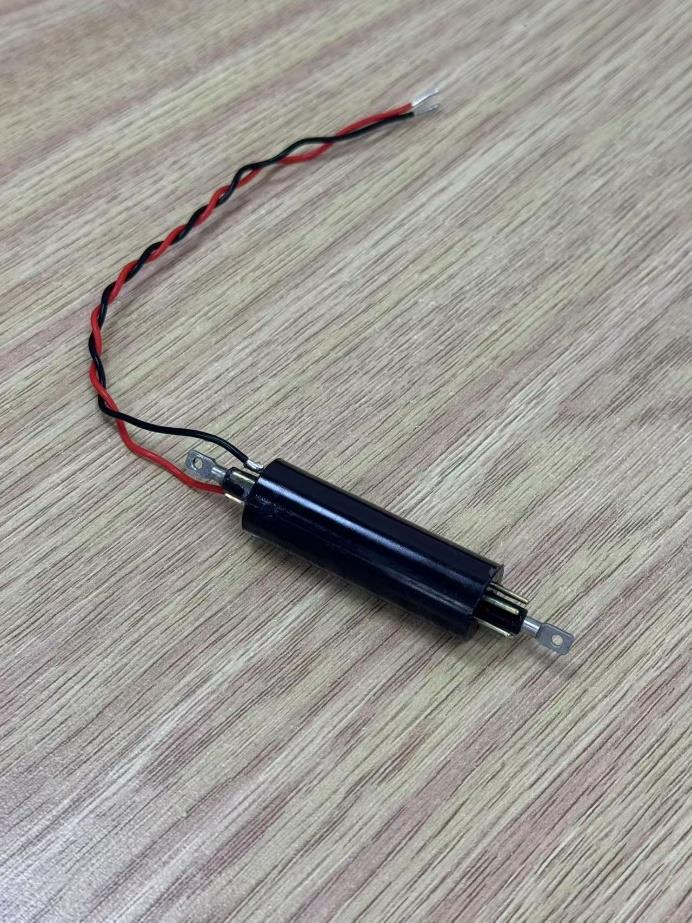

Hydrophone Unit
Hydrophone Unit

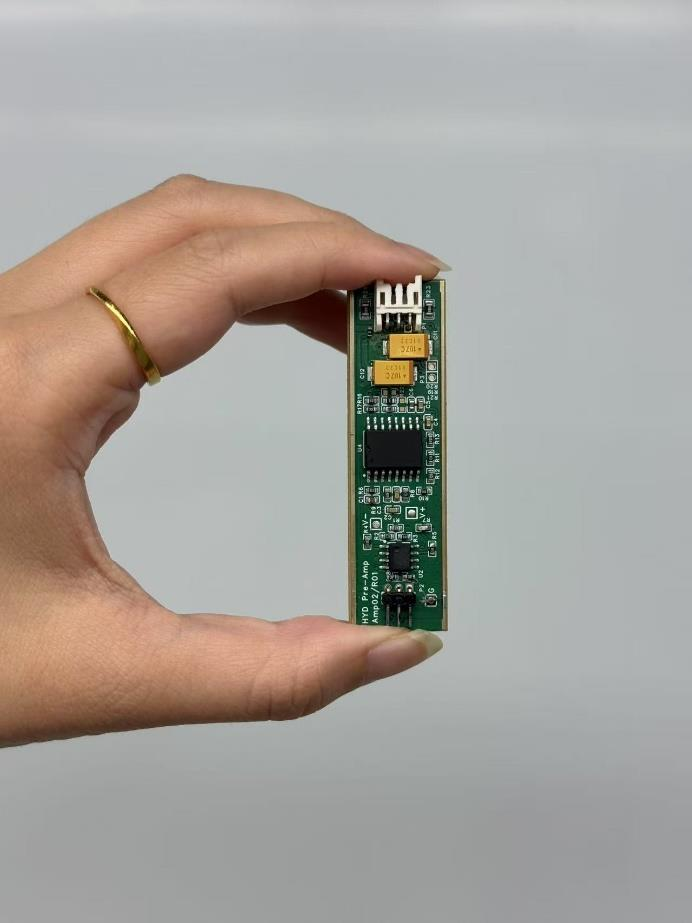

The Preamplifier
The Preamplifier
